15'' Fanless Touch Terminal from NEXXT Series
test
test
CPU
J6412, N97, i3 (10th/11th), i5 (10th/11th)
Memory
DDR4 4G DDR4-2666/2933/3200MHz, Up to 32GB
Storage
M.2 128GB (up to 512GB)
OS Supported
Windows 10, Windows 10 IOT, Windows 11, Linux (ubuntu not less than 20.04)
Display Size
15''
Resolution
1024 x 768
Display Ratio
4 : 3
Touch Panel
10-point Projected Capacitive Touch
Brightness
250cd/m²
Contrast Ratio
800:1
Response Time
10ms
Video Interface
EDP

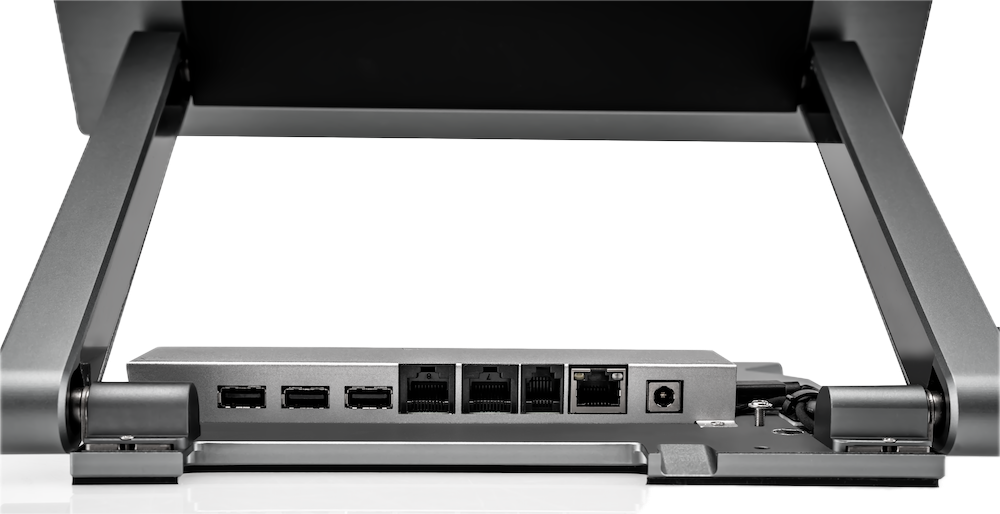

I/O Interface
DC12V IN 1×HDMI 5×USB2.0 1×USB3.0 2×RS232 1×CASH DRAWER(RJ11)
Power
Input: AC 100-240V Output: DC 12V / 5A
Dimensions (W x D x H)
330 × 268 × 46.5 mm, N.W. 5 Kg
Packing Dimensions (W x D x H)
426 × 400 × 100 mm, G.W. 5.5 Kg
VESA Mounting
75×75mm / 100×100mm
Certificates
FCC / CE / RoHS
Optional Peripherals
ISO Track 1/2/3 Magnetic Stripe Reader 2×20 VFD / 10.1” Second Display iButton / Fingerprint
