15.6'' Fanless Touch Terminal VP Series

VP-3100

Sleek but sturdy, built to work as hard as you do.

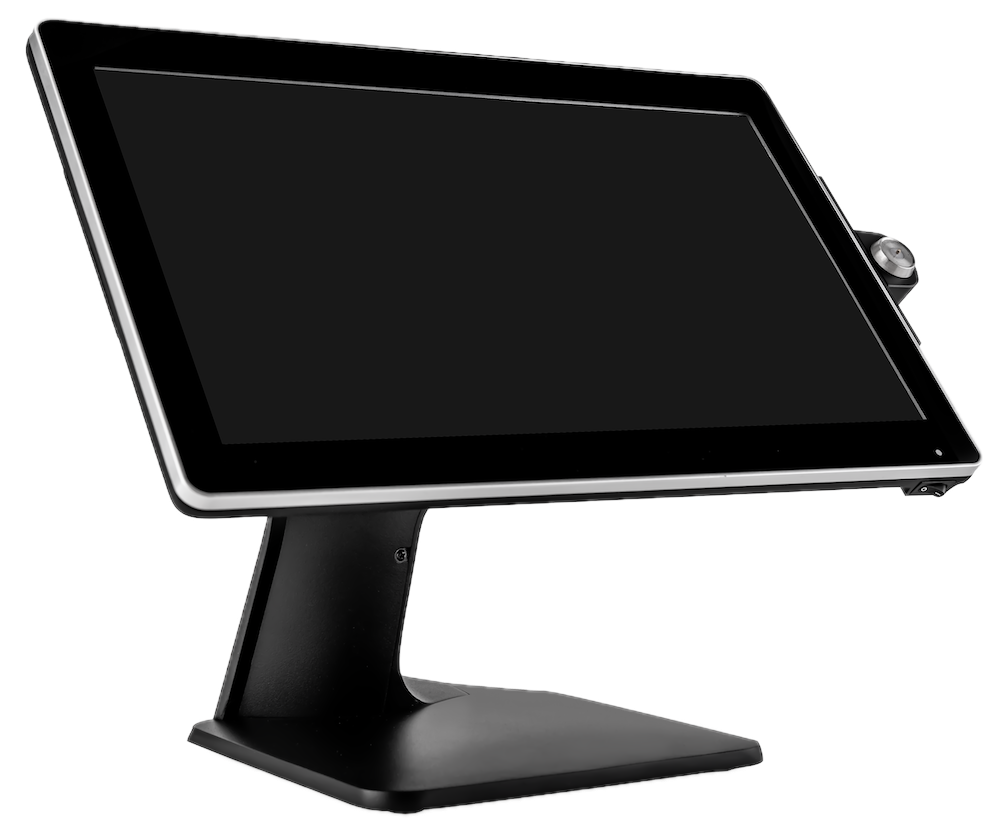

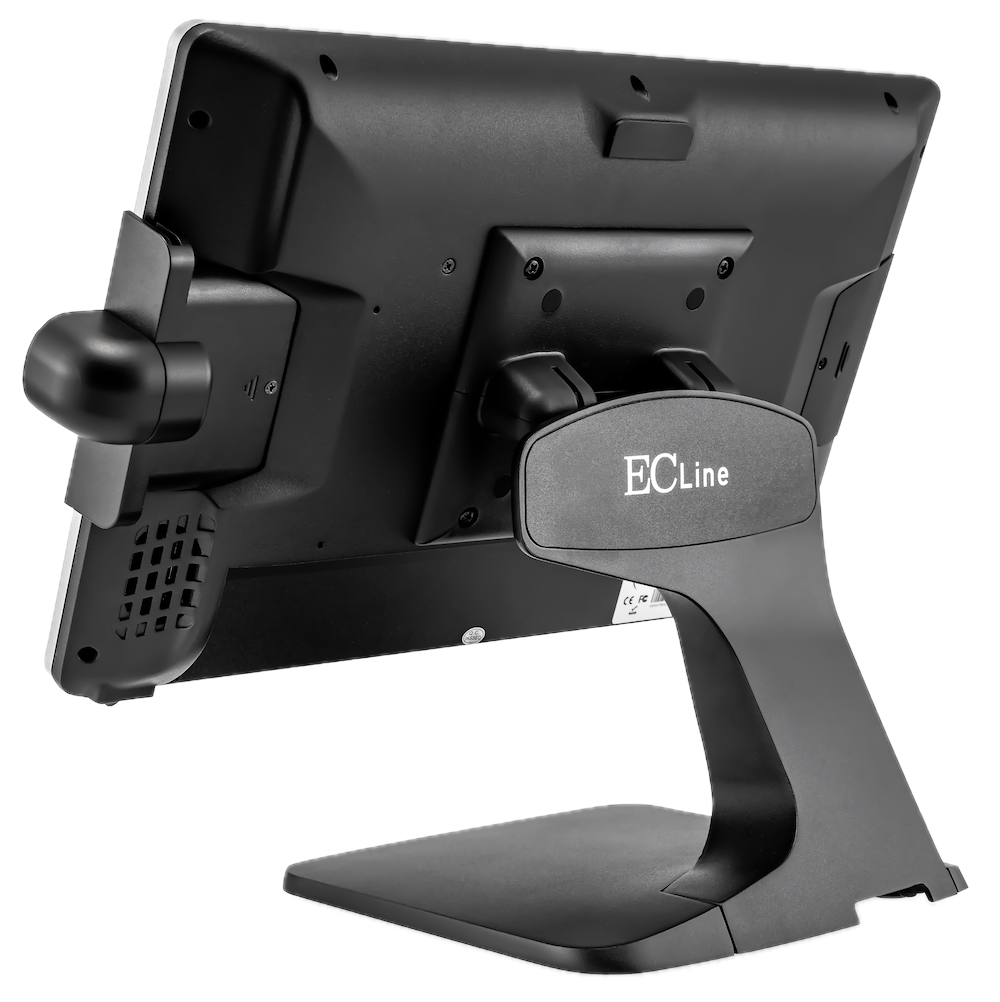

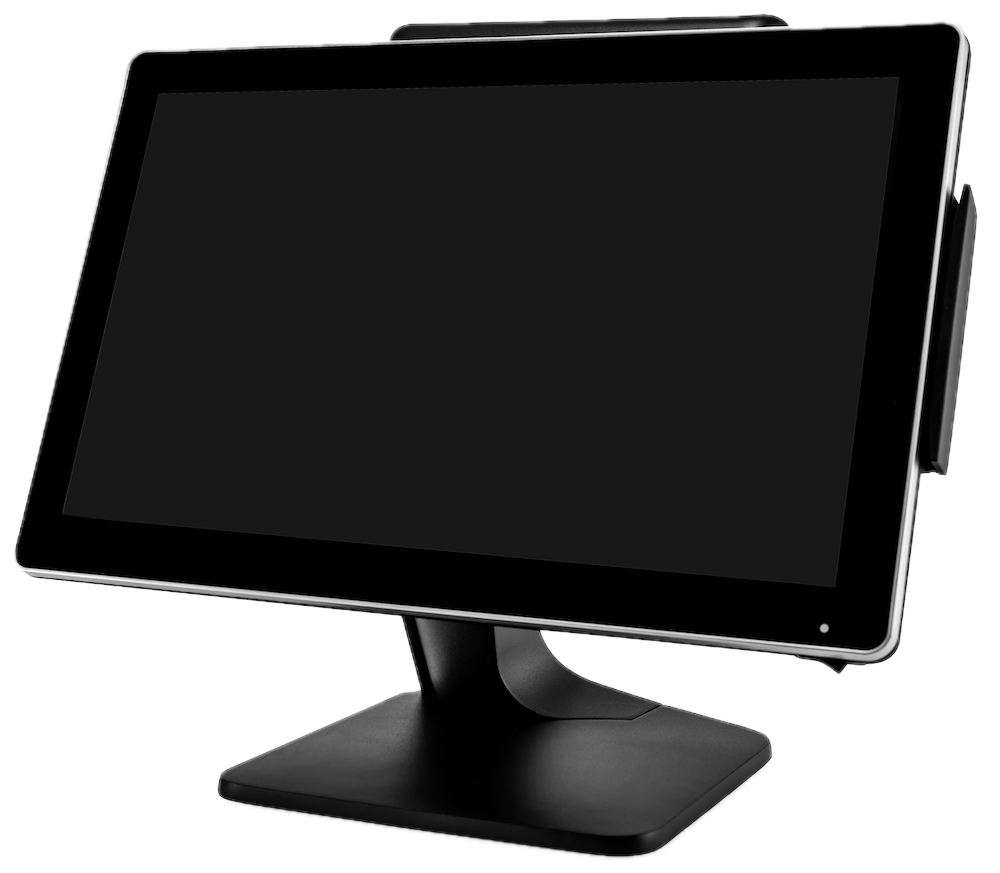

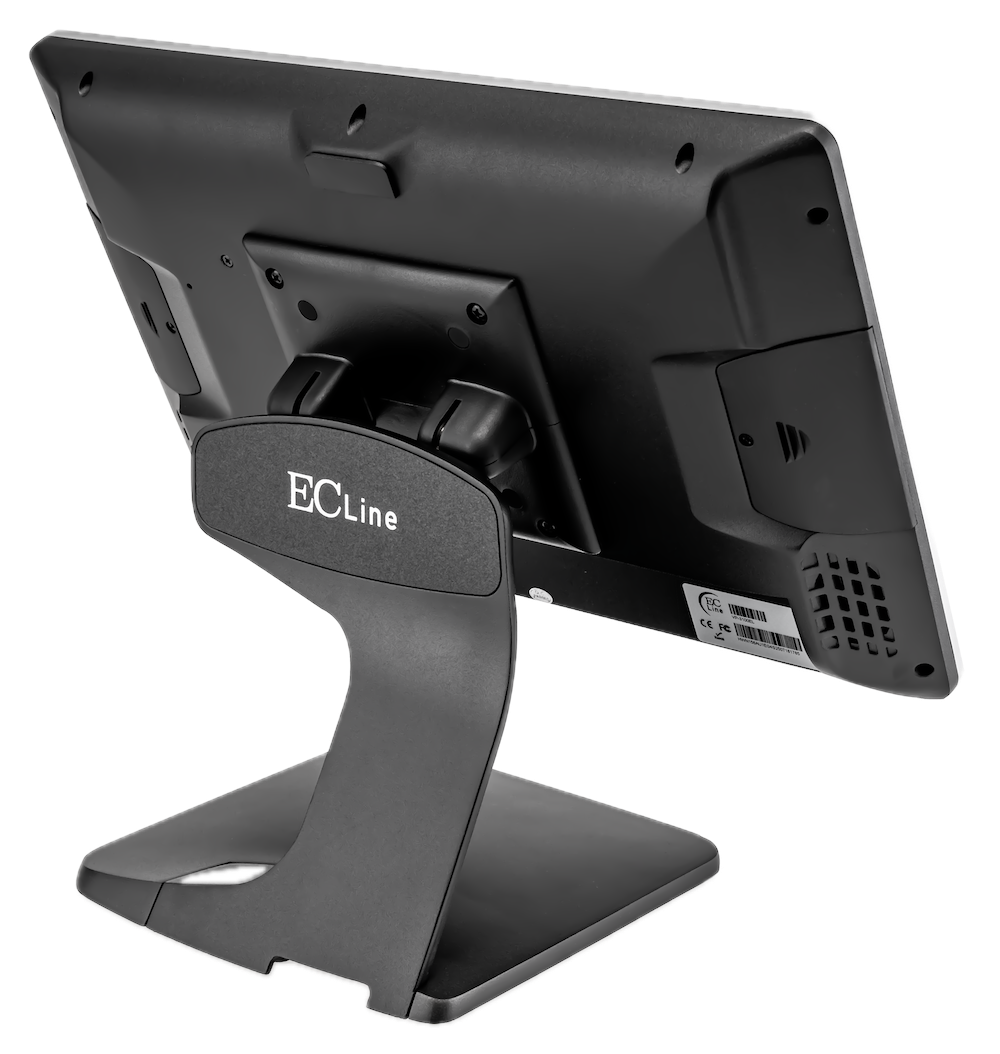

The VP-3100 is the older brother of the 1100. It has a sleek L-Stand (Tall Version available) and a beautiful 15.6'' Full HD display. Same as the VP-1100 it is built to last and take on any workload without being crushed by it.

Technical Specifications

CPU

J6412, N97, i3 (10th/11th), i5 (10th/11th)

Memory

DDR4 4G DDR4-2666/2933/3200MHz, Up to 32GB

Storage

64 / 128 / 256GB SSD or 500GB SATA HDD

OS Supported

Windows 7, Windows 8.1, Windows Embedded 8.1 Industry, Windows 10 / 10 IOT, Windows 11, POS Ready 7, Linux (ubuntu)

Display Size

15.6''

Resolution

1366 × 768 (Default) / 1920 × 1080

Display Ratio

16 : 9

Touch Panel

10-point Projected Capacitive Touch

Brightness

220cd/m²

Contrast Ratio

600:1

Response Time

10ms

Video Interface

EDP

I/O Interface

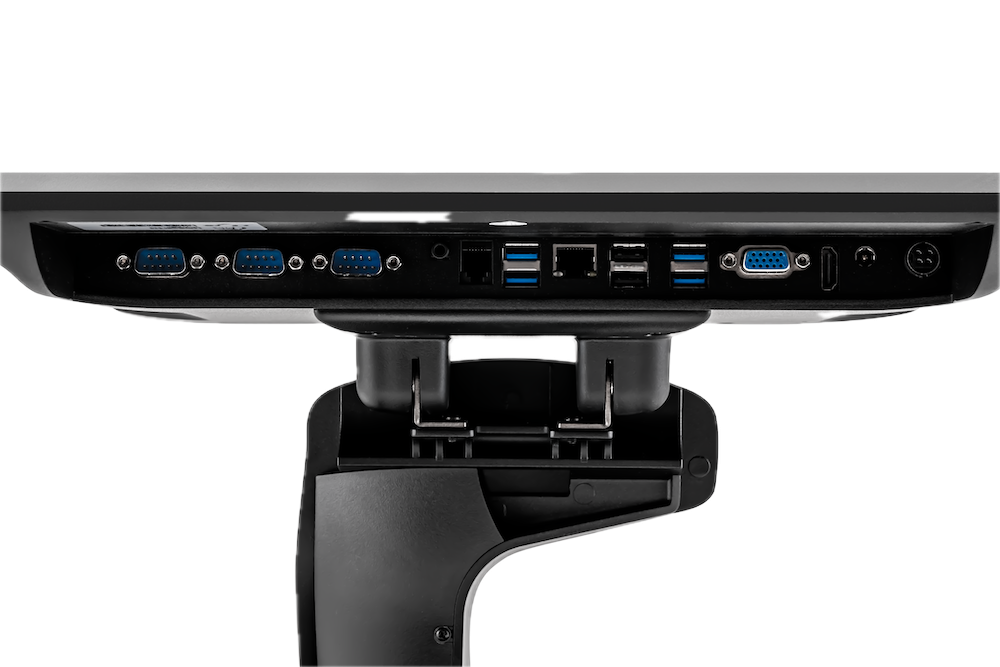

DC12V IN / DC12V OUT 1 × HDMI 2 × USB2.0 4 × USB3.0 3 × RS232 1 × CASH DRAWER (RJ11)

Power

Input: AC 100-240V Output: DC 12V/5A

Dimensions (W x D x H)

387 × 200 × 315 mm, N.W. 4.9 Kg

Packing Dimensions (W x D x H)

440 × 310 × 413 mm, G.W. 6.8 Kg

VESA Mounting

75×75mm / 100×100mm

Certificates

FCC / CE / RoHS

Optional Peripherals

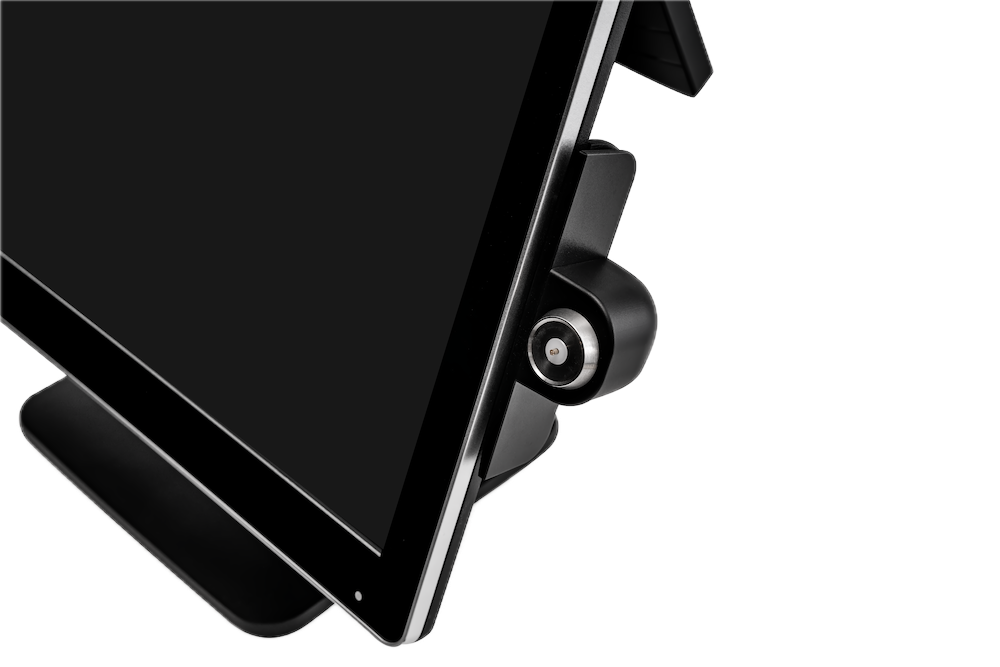

ISO Track 1/2/3 Magnetic Stripe Reader 2×20 VFD / 10.1” Second Display iButton / Fingerprint
